Inicio /Productos/cable de red cat7/cat7/cat6a SFTP 22AWG LAN cable double braid solid shield network cable for outdoor use LK-SF6ACB231

cat7/cat6a SFTP 22AWG LAN cable double braid solid shield network cable for outdoor use LK-SF6ACB231

1000 Meters
MOQ
$0.40(>=1000 Meters)
Precio
cat7/cat6a SFTP 22AWG LAN cable double braid solid shield network cable for outdoor use LK-SF6ACB231
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: LK-SF6ACB231
Number of Conductors: 8
Type: Cat 7
Conductor: BC,CCA
Cores: 8PIN
Jacket: PVC
AGW: 22-23awg(1/0.57mm)
OEM/ODM: Acceptable
Información básica
Model Number: LK-SF6ACB231
Pago y Envío Términos
Packaging Details: Inner Bah:PE bag,POLY bag,OEM packing Outer Box:Cardboard
Supply Ability: 50000 Meter/Meters per Month
Descripción de producto

cat7/cat6a SFTP 22AWG lan cable double braid shield solid network cable for outdoor use

Product Description

Product Features:

ELECTRICAL CHARACTERISTICS20℃
MAX.CONDUCTOR DC RESISTANCE ( ohm/KM)      #23 #22  93.8
INSULATION RESISTANCE    Min.5000MΩ*km
DIELECTRIC STRENGTH1000V dc/ 2 seconds
RESISTANCE UNBALANCEMAX 2%
CAPACITANCE UNBALANCEMAX. 160PF/100M
INPUT IMPEDANCE1-100MHZ 100+/-15ohm
 100-250MHz 100+/-22ohm
 250-500MHz 100+/-22ohm
MEAN CHARATRERISTIC IMPEDANCE@100MHZ100+/-15 OHMS
NOMINALE VELOCITY OF PROPAGETION(NVP)75+/-2%
PROPAGATION DELAY @ 100MHZ >=537.6 ns/100M
PROPAGATION DELAY SKEWMAX. >=45ns/100M



Drawing:

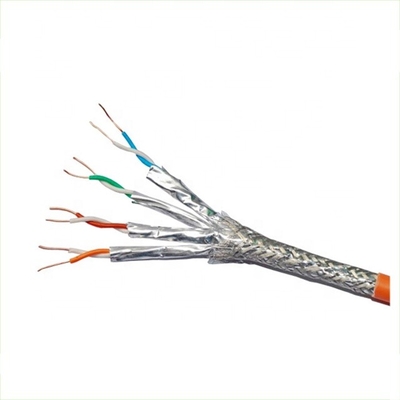

Product photos:



Related Products Recommendation:









Packaging & Shipping

 Packing:

Outer Box: Cardboard suits for all kinds of transpotation

Shipping:

Our Services

1)Reply your enquiry within 24 working hours;

2)Experienced staffs answer all your questions in fluent English;
3)Customized Design is available,OEM&ODM are welcomed;
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
5)Special discount and protection of sales area will be provided to our distributor.



Sales Condition

1. Terms of payment: T/T, Western union,money gram or Paypal.

2. Delivery time: 3 to 15 working days after received the payment.

3. Shipping methods: By express, air or sea (According to the client's request).
